ABB CRB 1910-10 × Kemppi · integrated & supported in Australia

Weld better.
Ship faster.
From day one.

ABB CRB 1910-10 × Kemppi Master M 358. No safety fencing. No complex setup. No compromise.

Configure & order online How it works

Price AUD $89,000 +GST     or from ~$411/wk on business finance (5 yrs at 7.49% p.a., subject to approval)

Powered by ABB Robotics Kemppi Australian-integrated

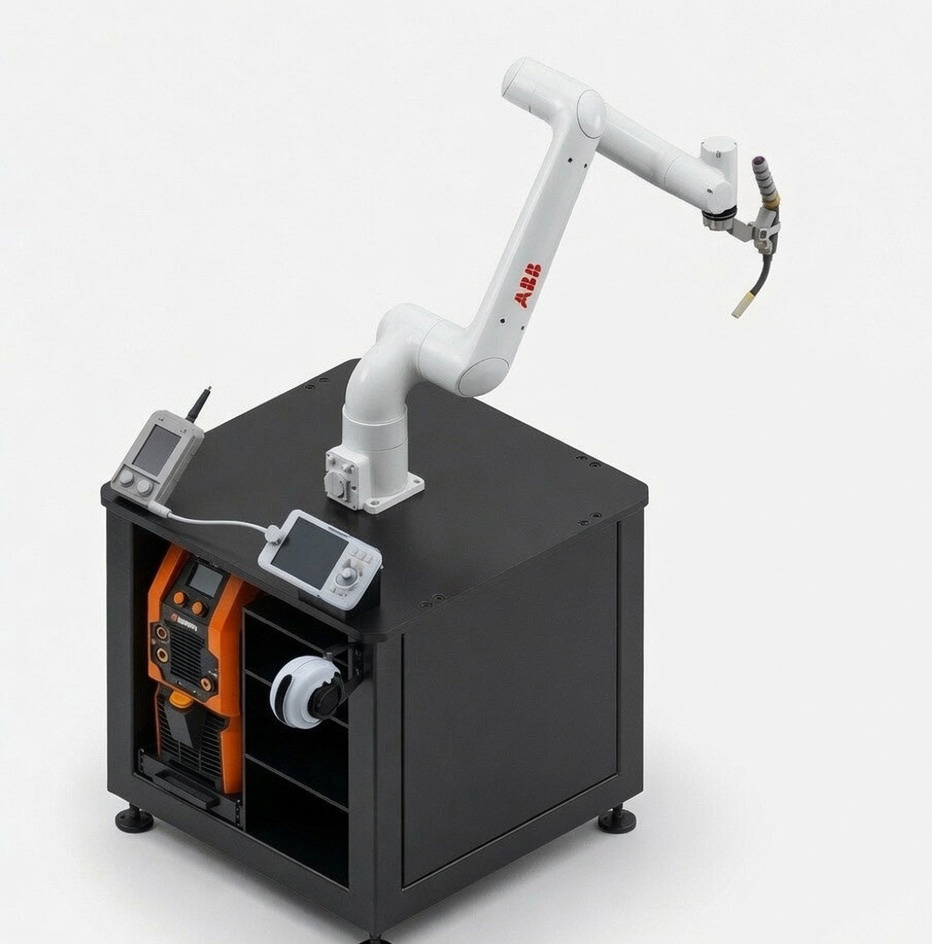

MexxBot Solo system — ABB CRB 1910-10 cobot with Kemppi welder on mobile plinth, cabinet open
±0.03mm
Repeatability (ISO 9283)
1520mm
Working reach
11kg
Payload
5.8 m/s
Max TCP speed
Complete system

Everything in the box

No hidden integration fees. No missing parts. Arrive on site, set up, and weld.

ABB CRB 1910-10 — PoWa Welding

Robot
  • CRB 1910-10/1.52 collaborative arm — up to 11 kg payload, 1520 mm reach
  • OmniCore E10 controller
  • 10m FlexPendant touchscreen — keyless 2-mode selector
  • SafeMove Collaborative safety — Cat 3, PL d
  • Arc welding Premium application software ($1,030 value — included)
  • RobotWare — Advanced motion, World Zones, Collision detection & avoidance, Multitasking
  • EtherNet/IP Scanner — Embedded wired WAN
  • All cables and mounting hardware

Kemppi Cobot 358

Welding
  • Master M 358 G Pendant Remote (MIG/MAG)
  • Master M Cooler — liquid-cooled torch circuit
  • Earth cable 70mm² 5m
  • Digital Connectivity Module 2.0
  • ISO 9409-1-50 M6 adapter flange
  • X-R Bracket S — cable management
  • GX/F Torch Holder
  • GF 403 W 5 MIG Gun + Feeder Kit V1.2

Add a 1500 × 1200 professional welding table — from $4,500 +GSTD28-compatible fixturing system, perforated top, levelling feet, heavy-duty steel frame. Add one to four in the configurator above.

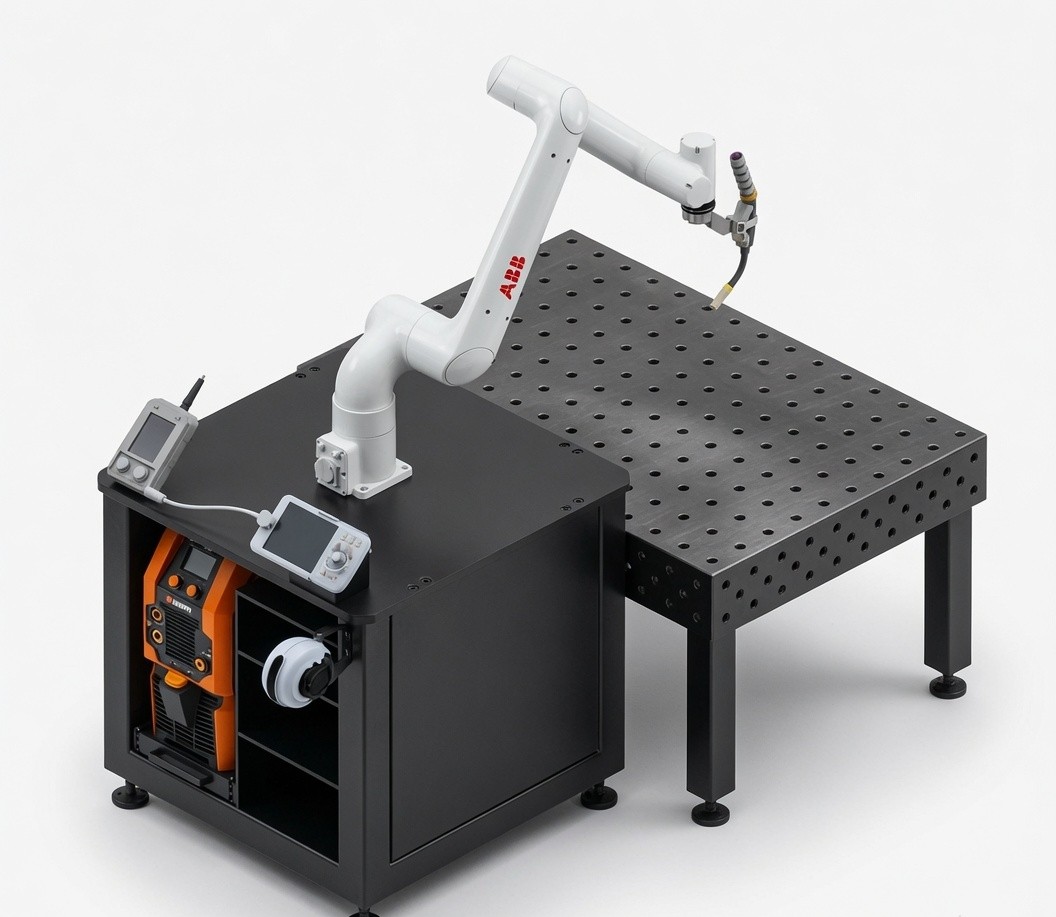

MexxBot system shown with optional professional welding table and Kemppi welder
Knowledge Centre

How the MexxBot system actually works

See it weld, see how it’s taught, and understand the modes — straight from ABB and Kemppi.

Watch · ABB

Create a linear weld in 30 seconds

Drag-and-teach in action: guide the arm by hand, set your points on the pendant, and weld. No code.

The Kemppi welder on an ABB cobot, welding in a real industrial workshop.
Will a welding cobot take your job? The honest answer for skilled welders.

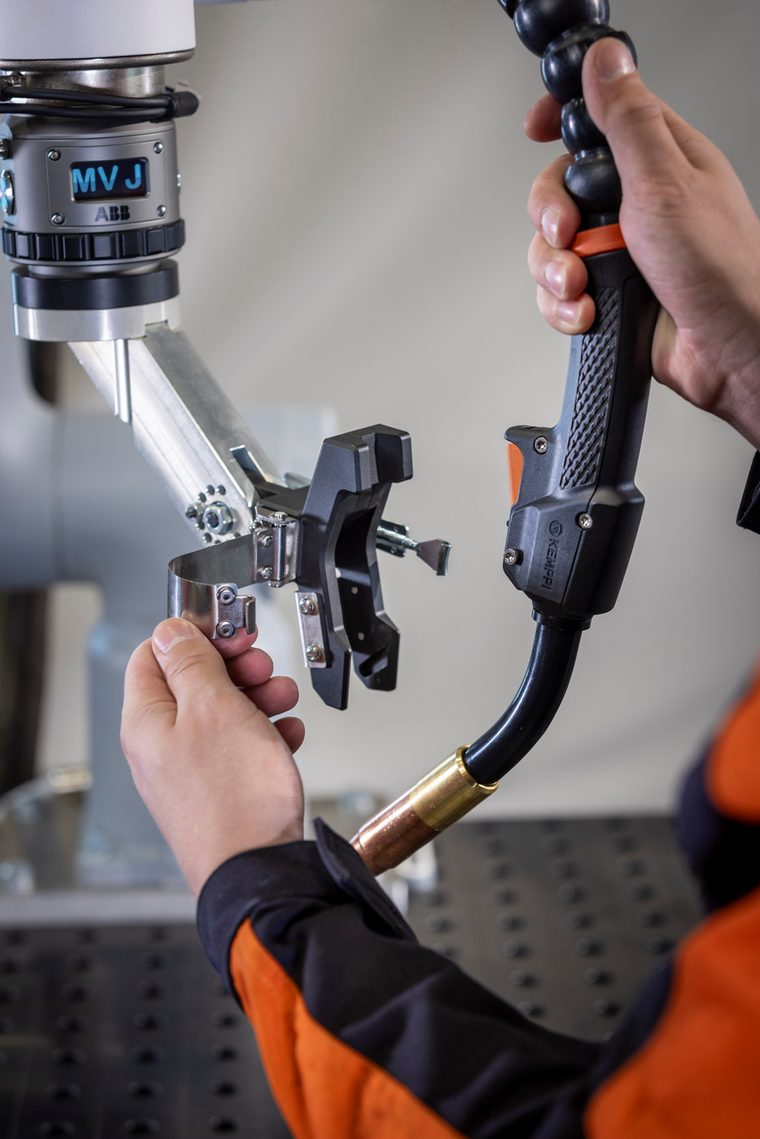

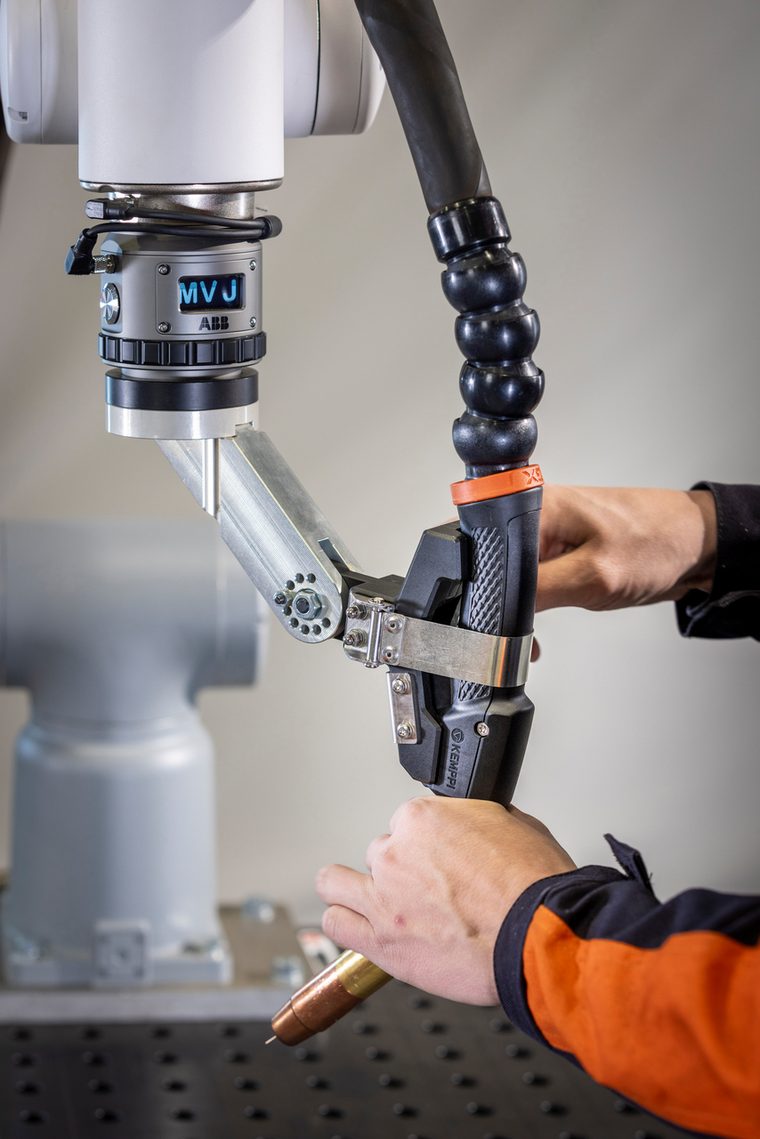

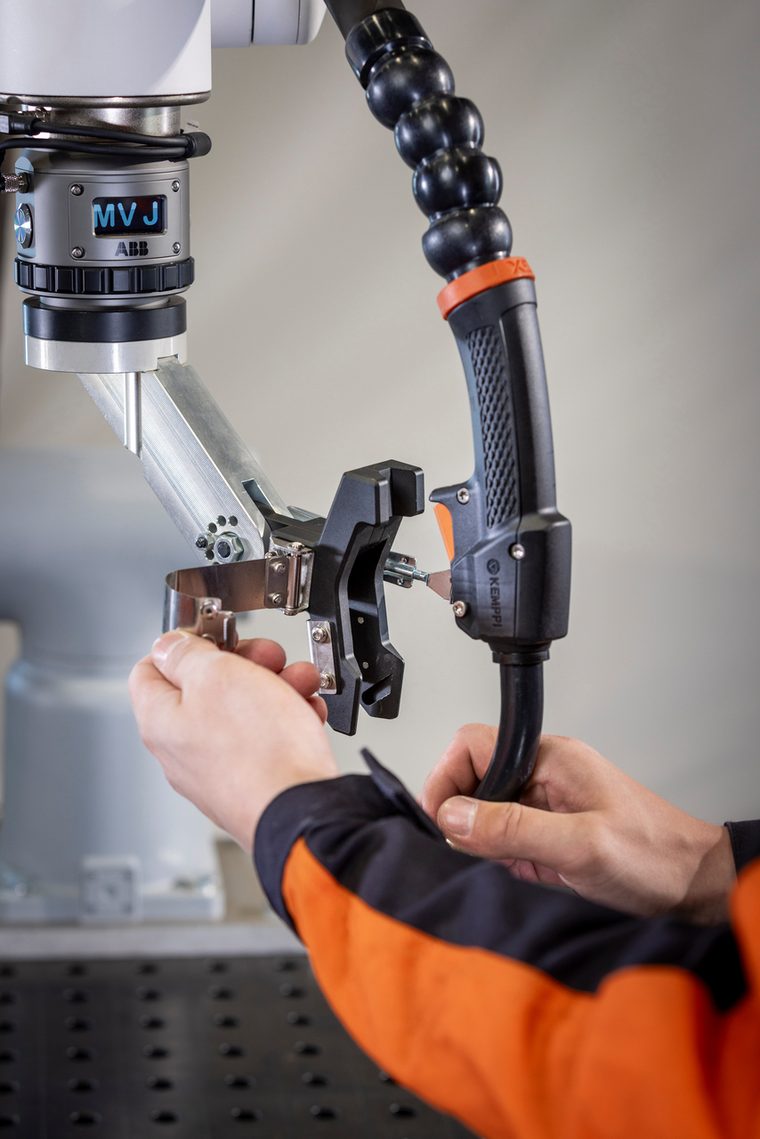

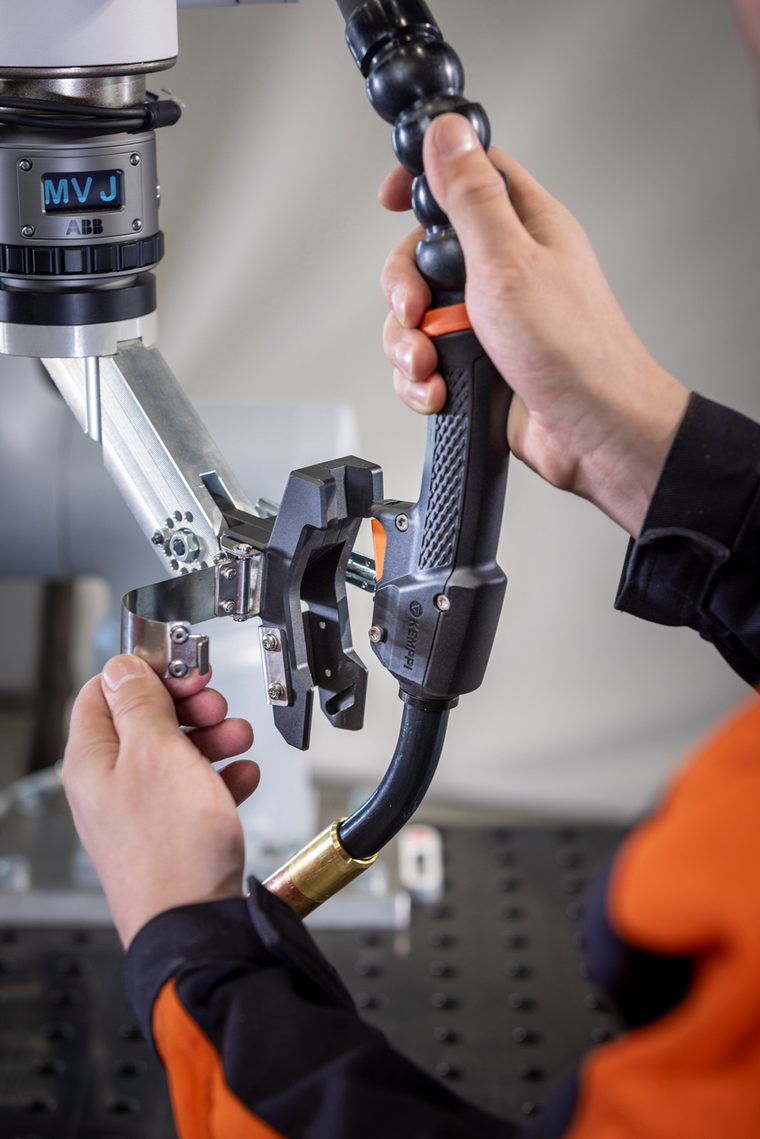

Detaching the Kemppi torch from the cobot holder, step 1 Detaching the Kemppi torch from the cobot holder, step 2 Detaching the Kemppi torch from the cobot holder, step 3 Detaching the Kemppi torch from the cobot holder, step 4

Quick-detach torch — lift it off the holder to hand-weld, then click it back for automated welding.

One system, several modes

  • Manual & auto modes. Teach at reduced speed, then run at full speed in auto — switched on the controller.
  • Drag-and-teach. Guide the arm by hand or jog it with the pendant joystick, on a plain graphical screen. No code.
  • Kemppi welding processes. Manual, synergic and pulse MIG — with ABB Arc Welding Premium included (normally a $1,030 option).
  • Digitally linked. Kemppi’s Connectivity Module ties the welder to the robot, so the robot drives the weld — not two machines you sync by hand.
Mexx Engineering Pty Ltd
A product of Mexx EngineeringIndustrial robotics, EPCM & automation — Arundel, Gold Coast QLD. mexx.com.au →
ABB Authorized Value Provider
ABB Authorized Value ProviderABB’s premium partner status — for over 18 years.
Kemppi Authorized Distributor
Kemppi Authorized DistributorGenuine Kemppi welding equipment & support.
ISO 9001ISO 45001AS9100
Mexx Engineering — certified by ATLAS
Configurator

Build your system

Start with the $89,000 +GST Solo system, then add tables, tooling, delivery & freight $89,000 +GST All prices shown are +GST.

1

Your base system

Every MexxBot starts here — the foundation of your cell.
MexxBot Solo system — cobot, Kemppi welder and controller on mobile plinth
MexxBot Solo System IN YOUR BUILD
ABB CRB 1910-10 cobot · Kemppi Master M 358 power source · controller & FlexPendant · mobile plinth with wheels & levelling feet.
$89,000 +GST · AUD
2

Welding tables

Add up to four professional welding tables. Choose how many you need.
Professional welding table with D28 hole grid
Professional welding table
$4,500 each +GST · AUD
1500 × 1200 · D28 hole grid · levelling feet
0
3

Tooling & fixture kits

Modular D28 clamping & fixturing. Add one or several — tap a kit to see exactly what's inside.
4

Delivery, setup & training

Optional — and the easy way to skip the freight headache if you're nearby.
5

Freight

Prices are Ex Works our Arundel QLD factory. Pick a delivery option — figures are indicative and confirmed on your invoice.
Indicative road-freight estimate from Arundel for the crated system (~500 kg). Final freight is confirmed on your invoice.
Enquire

Prefer to talk it through first?

Send us your details and we’ll come back with a firm written quote. Your build above comes through with it. No deposit, no obligation.

Suitability check

How much of your welding could a MexxBot take?

List your regular welding jobs. We'll show which ones the standard MexxBot handles, which need an option, and which are worth a call. Then we'll work out what the suitable work is worth to you.

Your workshop
Your welding jobs (examples filled in — change them to your own)
Why MexxBot

How we compare

Premium ABB + Kemppi components — at the price of a mid-tier system.

Feature MexxBot ABB + Kemppi Imported systems Other Western systems
Robot & welder control Digitally integrated (Kemppi DCM) — robot drives the weld Robot & welder run as separate, manually-set systems Integration varies
Jog & teach the arm Real joystick on the FlexPendant — point and teach Typically no joystick on the pendant Varies by platform
Start-up & interface On in seconds — simple graphical wizard Can be slower to boot and set up Varies
Robot platform ABB CRB 1910-10 (PoWa Welding) Entry-level imported arm Other Western brand
Repeatability (ISO 9283) ±0.03mm typically ±0.05mm typically ±0.05mm
Welder Kemppi — made in Finland OEM / entry-level Other brand
IP protection IP65 body / IP67 wrist typically IP54 typically IP54
Safety cert. Cat 3, PL d — SafeMove CE marked — varies Cat 3, PL d
No fencing required Yes Yes Yes
Australian service ABB's Australia-wide network + Mexx Engineering Importer / reseller only Distributor network
Indicative price (AUD) $89,000 +GST — Solo system varies commonly $130,000–$190,000+

Built for welders, not programmers

  • ✓  The Kemppi welder and ABB robot are digitally linked through Kemppi's Connectivity Module — the robot drives the weld, so you're not hand-syncing two machines.
  • ✓  Quick-detach torch — lift it off to hand-weld, then click it back for automated welding.
  • ✓  Jog the arm with a real joystick: point it where you want, and teach the point.
  • ✓  On in seconds, with a clear, simple graphical interface.
  • ✓  Operators are typically welding within the hour.

Premium ABB + Kemppi components for roughly half the price of comparable ready-to-weld premium systems — backed by ABB's Australia-wide service network and Mexx Engineering support.

How to buy

Four steps to your first automated weld

From your browser to welding production — in under 13 weeks.

1
Configure online

Choose your table configuration and optional extras above. Live pricing updates instantly. Takes about 2 minutes.

2
Reserve your slot

Pay a $2,000 +GST ($2,200) fully-refundable deposit online to lock in your price and production slot. Or apply for same-day business finance approval.

3
11–13 weeks delivery

ABB and Kemppi components are sourced, integrated, and tested. We invoice 50% to place the order, then the balance (less your deposit) before release. Goods are Ex Works our Arundel factory.

4
Set up & weld

It's essentially plug-and-play. New to ABB? Add our optional Delivery + Setup & Operator Training Day and your team will be welding the same day. Ongoing Australian support included.

MexxBot Dual configuration — two welding tables
Dual configuration · 2 welding tables

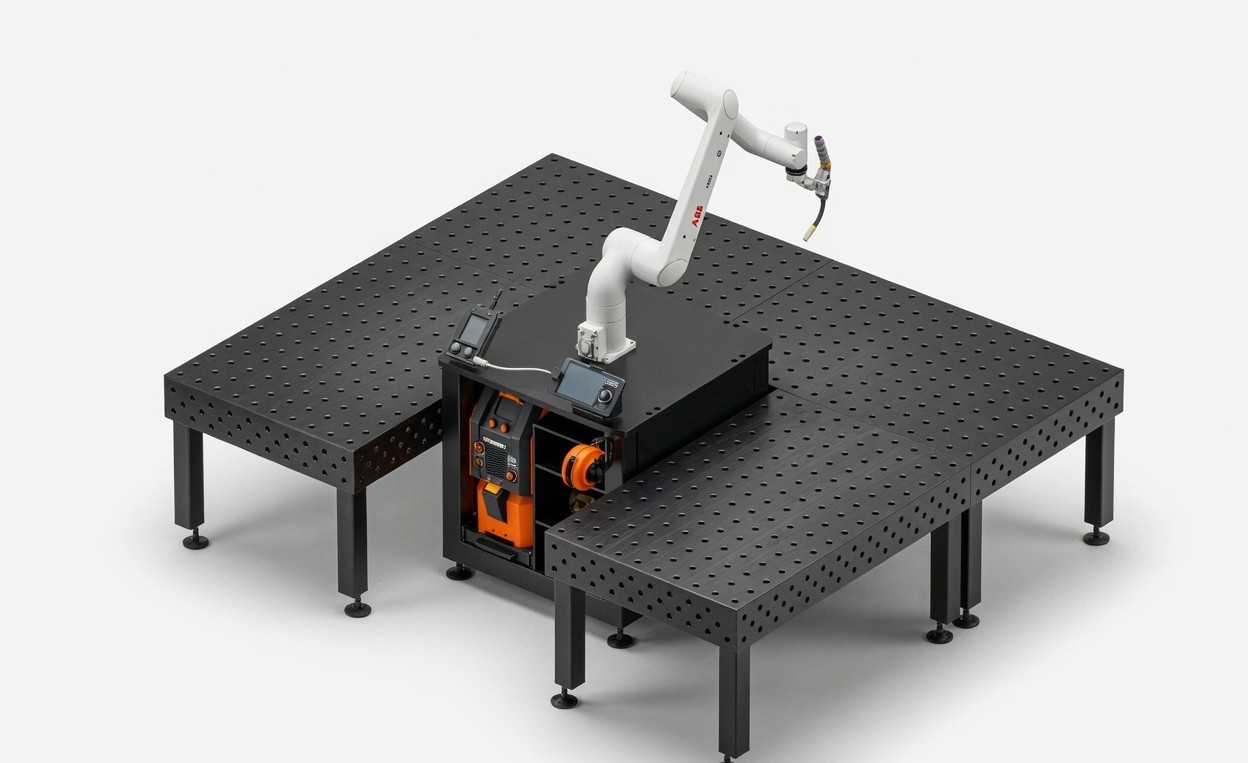

MexxBot Quad configuration — four welding tables
Quad configuration · 4 welding tables
Also from MexxBot

MexxBot Pal — palletising cobot

Stacking boxes by hand? The MexxBot Pal is built on ABB's PoWa collaborative arm — same FlexPendant, same OmniCore controller. From $77,100 +GST.

See MexxBot Pal →
FAQ

Common questions

Do I need safety fencing?
For most collaborative applications, no fencing is required. The ABB CRB 1910-10 is a true collaborative robot with integrated torque sensors in all six joints that stop it on contact, certified to Category 3, PL d under ISO 10218 and ISO/TS 15066. As with any welding cell, a site-specific risk assessment is required before operation to confirm your specific application can run barrier-free — this is the operator's responsibility, and our optional Setup & Training day can help you complete it. You'll also need welding screens to protect people nearby from arc flash, as with any welding.
How difficult is it to program?
ABB's FlexPendant uses graphical Wizard programming — most operators are running their first weld program within hours. No coordinates, no code required. Add our optional Setup & Operator Training day and we'll train your team on-site.
What materials and processes does it weld?
MIG/MAG with solid or cored wire, on mild steel and stainless from 1 to 10 mm as standard. Thin sheet down to 0.5 mm, and aluminium from 1 to 10 mm, need extra Kemppi options. Butt, fillet and lap joints, single or multi-pass, and round seams up to 250 mm diameter without a positioner. The suitability check shows how your own jobs rate.
How does payment work?
All prices are +GST. Payment runs in stages, like ordering a machine tool. (1) Pay a $2,000 + GST ($2,200) deposit online today to lock your price and order slot — fully refundable until we order your parts, then credited to your final invoice. (2) We confirm your specs and invoice 50% to place the order with ABB and Kemppi. (3) The remaining 50% (less your $2,000 deposit) is due before the goods are released from our Arundel factory. Prices are Ex Works Arundel; freight is additional and can be arranged at cost — or bundle delivery with our Setup & Training day.
Do I need setup or training?
The MexxBot is essentially plug-and-play — if you already know ABB OmniCore, power it up and get to work. If your team is new to ABB, add our optional Delivery + Setup & Operator Training Day ($1,950 +GST): we deliver on our own truck, position and power up the cell, run test welds on your material, and train your operators for a full 8-hour day. Included within 100 km of our Arundel factory; further afield, travel is quoted separately. You can also add it later.
What warranty do I get?
The ABB CRB 1910-10 carries ABB's standard 12-month warranty from commissioning. The Kemppi welding package carries Kemppi's standard warranty. Mexx Engineering provides ongoing Australian-based support for the integrated system.
What can't it weld?
As supplied, the robot doesn't do TIG or stick welding, sheet under 0.5 mm, joints the torch can't reach with about 45 mm clearance (such as deep, narrow boxes), or parts whose gaps or position vary by more than ±0.5 mm unless you add the touch-sensing option. Aluminium needs an extra wire-feed kit. Outside these limits a job is often still doable as a custom Mexx solution — call us on (07) 5571 5733.
Will it weld to AS/NZS 1554?
Yes, the MexxBot can produce welds to AS/NZS 1554. As with manual welding, qualifying the weld procedure for your joints, materials and positions is your responsibility.
Can you weld my sample parts before I buy?
Yes. Send us sample parts and we'll weld them at our Arundel workshop. There's a fee, credited against your order if you go ahead.
If it breaks, who comes and how fast?
Phone and remote support next business day. On-site within 48 hours in South-East Queensland. Elsewhere, through ABB's Australian service network.
What does it cost to run each year?
About $500 a year for a general service of the robot and welder, plus the same wire, gas and power as manual welding.
What if I pay the deposit and it doesn't suit?
Your $2,200 deposit is fully refundable until we order your parts. If you're unsure, run the suitability check first or send us sample parts.
Who owns the weld programs?
You do. The programs you teach for your jobs are yours.
Why not a cheaper imported cobot?
It's a genuine ABB cobot, built on the same platform as ABB's industrial robots, with a Kemppi welder digitally linked to it. It's supported by ABB's Australian service network and by us.

Ask us a harder question

Something we haven't answered? Ask it straight. An engineer replies, usually within one business day.
